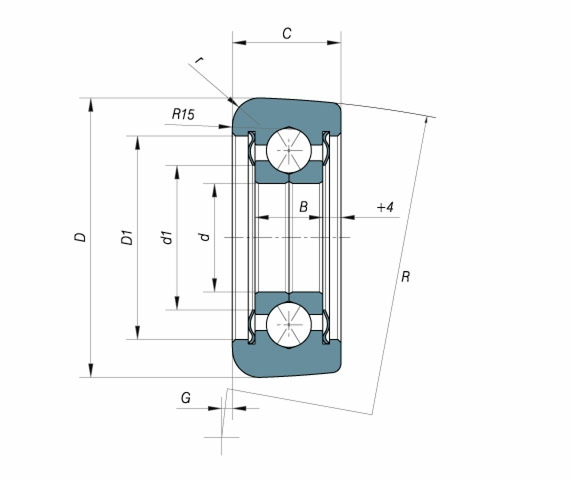

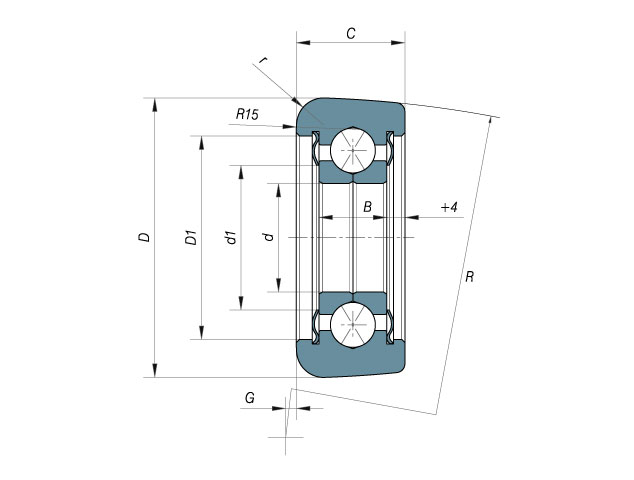

Technical Drawing
Exploded View
Full complement radial ball bearings, like the previous series, are mainly used in fork lift masts.
They are manufactured with one row of balls with four contact points.
The full complement execution guarantees a very high radial load capacity and a very good axial support.
The inner ring, which is made of two half-
The calculation of these bearings is made with restricted radial clearance and sections.
Full complement ball bearings for fork lift masts have the following characteristics:
The outer ring is manufactured in case hardened UNI 20CrMnTi steel with hardness
degree 60-
Technical Characteristics
Full complement ball bearings for fork lift masts
C.R. Ref.
900-
900-
900-
900-
900-
900-
D
mm
69,5
77,5
88,5
107
122,5
149
d
mm
24
28
33
40
50
65
B
mm
15
18
20
23
26
30
C
mm
26
28
30
34
38
44
D1
mm
45
57
62,5
79
93
115
d1
mm
30
37
43
51
63
80
R
mm
250
250
500
500
1000
1000
G
mm
4,25
4,85
4,9
2,35
21,4
17,25
C
KN
38
51
66
92
119
178
Co
KN
28
31,5
42
70
98
155
Ca
KN
32,5
44
56
75
93
131
Coa
KN
24
29
37,5
59
77
111

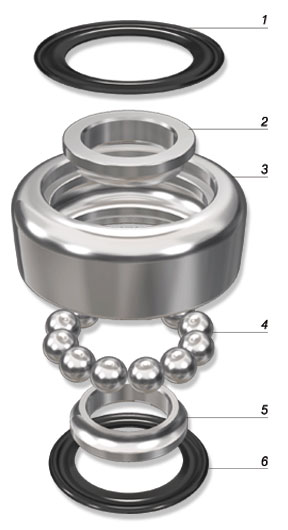

1. Protection cover
2. Inner ring
3. Outer ring
4. Balls
5. Inner ring
6. Protection cover
C: Dynamic load
Co: Static load
Ca: Dynamic axial load
Coa: Static axial load
