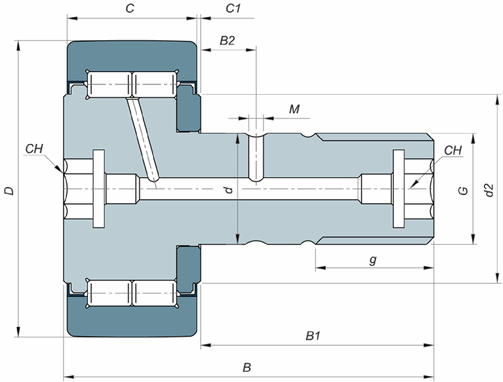

Technical Drawing

Exploded View

Home | Products | Track Rollers |  NUKR - Cam Follower

NUKR - Cam follower

On the front part, a seat for hexagon wrench or for corkscrew (on request) can be foreseen.

Sealing steel sheets forced on the outer diameter to form a safe labyrinth protection system.

Full complement of grinded flat-head cylindrical rollers.

Lubrication channels and holes in the pivot.

Tolerance of execution according to normal class, possibility of special execution according to class P5 (DIN 620).

Other important features of these bearings are:

Outer ring with double border of the rollers obtained entirely on the outer ring and accurately grinded to allow the roller to bear loads with axial components. The ring is usually cambered on the outer part, in order to improve working condition with heavy loads and to prevent the concentration of load onto side bands of the raceway. Rollers with cylindrical outer surface can be supplied on request.Pivot with threaded shank, one guide border of rollers obtained entirely and tempered rolling raceway.

Technical Characteristics

The main characteristic of this series of rollers is the high thickness of the outer ring, which is suitable to bear specific high pressures and the impacts that characterize the use of these bearings (ex. cam followers).

Cw : Dynamic load

COW : Static load

Pressure greaser

NIP A2x7,5

NIP A3x9,5

NUKR 35 - NUKR 40 - NUKR 47 - NUKR 52

NUKR 62 - NUKR 72 - NUKR 80 - NUKR 90

Adaptor for central lubrication

AP8

AP10

AP14

NUKR 35 - NUKR 40

NUKR 47 - NUKR 52

NUKR 62 - NUKR 72 - NUKR 80 - NUKR 90

C.R. Rif.

NUKR 35

NUKR 40

NUKR 47

NUKR 52

NUKR 62

NUKR 72

NUKR 80

NUKR 90

d (h7)

mm

16

18

20

20

24

24

30

30

D

mm

35

40

47

52

62

72

80

90

r min.

mm

0,6

1

1

1

1

1,1

1,1

1,1

C

mm

18

20

24

24

28

28

35

35

B

mm

52

58

66

66

80

80

100

100

B2

mm

7,8

8

9

9

11

11

15

15

B1

mm

32,5

36,5

40,5

40,5

49,5

49,5

63

63

M

mm

3

3

4

4

4

4

4

4

G

mm

M16x1,5

M18x1,5

M20x1,5

M20x1,5

M24x1,5

M24x1,5

M30x1,5

M30x1,5

g

mm

17

19

21

21

25

25

32

32

C1

mm

0,8

0,8

0,8

0,8

1,3

1,3

1

1

d2

mm

20

22

27

31

38

44

47

47

CH

mm

8

8

10

10

14

14

14

14

Cw

KN

15

18,4

28

29

40

44,5

69

79

Cow

KN

16,8

22,6

35

37,5

50

60

98

117

Max speed

RPM min-1

6500

5500

4200

3400

2600

2100

1800

1800

Nut locking

couple

Nm

58

87

120

120

220

220

450

450

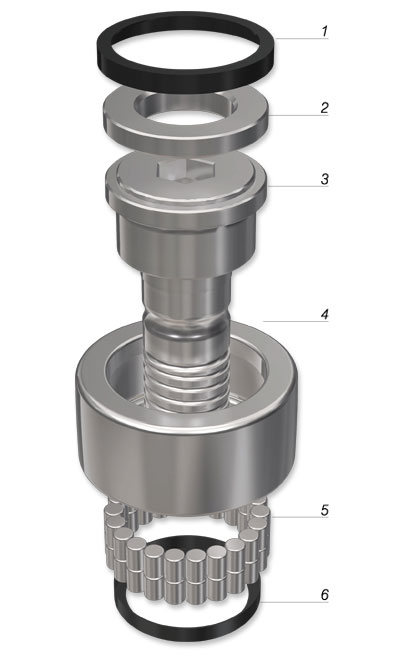

1. Seal  sheet

2. Support thrust ring

3. Pivot

4. Outer ring

5. Cylindrical rollers

6. Seal sheet
