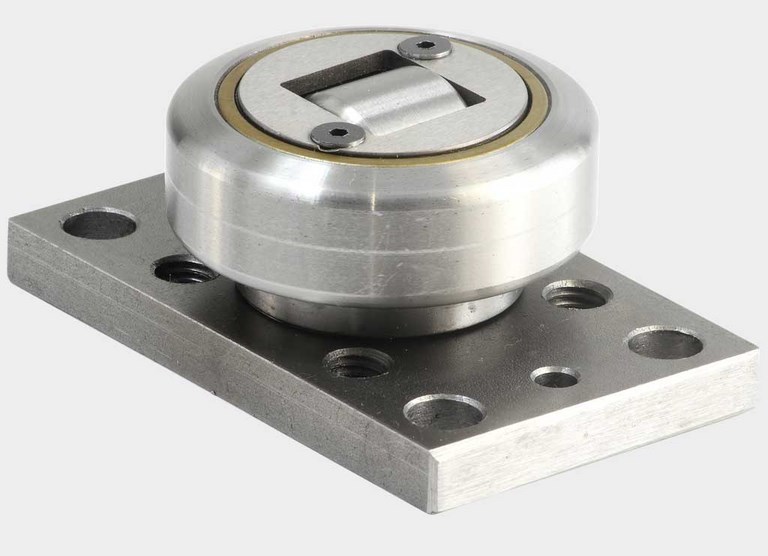

Combined bearings welded on plate
Handling - Combined bearings welded on plate
Technical Drawing and Exploded View - Combined bearings welded on plate
1. Combined bearing
2. Plate
2. Plate
Technical Data - Combined bearings welded on plate
| Cod (1) + (2) | Cod (1) | Cod (2) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | S (mm) | Profilo / Perfil |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 400-0631 | 4-0053 | 8-0288 | 90 | 70 | 30 | M.8 | 40 | 8,5 | 6 | 30 | 50 | 10 | EC053 |
| 400-0608 | 4-0054 | 8-0276 | 100 | 80 | 30 | M.10 | 40 | 10,5 | 6 | 40 | 60 | 10 | 2890 |
| 400-0609 | 4-0072 | 8-0276 | 100 | 80 | 30 | M.10 | 40 | 10,5 | 6 | 40 | 60 | 10 | 2890 |
| 400-0610 | 4-0055 | 8-0277 | 120 | 90 | 35 | M.12 | 50 | 12,5 | 6 | 50 | 80 | 15 | 2867 |
| 400-0611 | 4-0073 | 8-0277 | 120 | 90 | 35 | M.12 | 50 | 12,5 | 6 | 50 | 80 | 15 | 2867 |
| * 400-0612 | 4-0056 | 8-0278 | 120 | 90 | 40 | M.12 | 50 | 12,5 | 6 | 50 | 80 | 15 | 2810 |
| 400-0613 | 4-0074 | 8-0278 | 120 | 90 | 40 | M.12 | 50 | 12,5 | 6 | 50 | 80 | 15 | 2810 |
| * 400-0614 | 4-0058 | 8-0279 | 120 | 90 | 45 | M.16 | 90 | - | - | 90 | 120 | 20 | 2811 |
| 400-0615 | 4-0076 | 8-0279 | 120 | 90 | 45 | M.16 | 90 | - | - | 90 | 120 | 20 | 2811 |
| * 400-0616 | 4-0061 | 8-0280 | 180 | 140 | 60 | M.16 | 80 | 17 | 6 | 80 | 120 | 20 | 2862 |
| 400-0617 | 4-0078 / L | 8-0280 | 180 | 140 | 60 | M.16 | 80 | 17 | 6 | 80 | 120 | 20 | 2862 |
| * 400-0618 | 4-0062 | 8-0280 | 180 | 140 | 60 | M.16 | 80 | 17 | 6 | 80 | 120 | 20 | 2891 |
| 400-0619 | 4-0079 | 8-0280 | 180 | 140 | 60 | M.16 | 80 | 17 | 6 | 80 | 120 | 20 | 2891 |
| * 400-0620 | 4-0063 | 8-0281 | 200 | 160 | 60 | M.16 | 100 | 17 | 6 | 100 | 150 | 20 | 2757 |
| 400-0621 | 4-0080 | 8-0281 | 200 | 160 | 60 | M.16 | 100 | 17 | 6 | 100 | 150 | 20 | 2757 |
| * 400-0624 | 4-0011 | 8-0281 | 200 | 160 | 60 | M.16 | 100 | 17 | 6 | 100 | 150 | 20 | 2757 |
THE BEARINGS ARE IN ZRS EXECUTION.
* 400-0612, 400-0614, 400-0616, 400-0618, 400-0620, 400-0624 ARE SUPPLIED WITH LUBRICATION HOLE.
Technical Characteristics - Combined bearings welded on plate
C.R. combined bearings are usually welded on plate.
This is an ideal solution because the bearing welded on plate is directly applied on the structure of the plant, with the big advantage that the assembling and disassembling operations are extremely fast and cheap.
The combined bearings on plate can be supplied in the fixed or adjustable execution.
